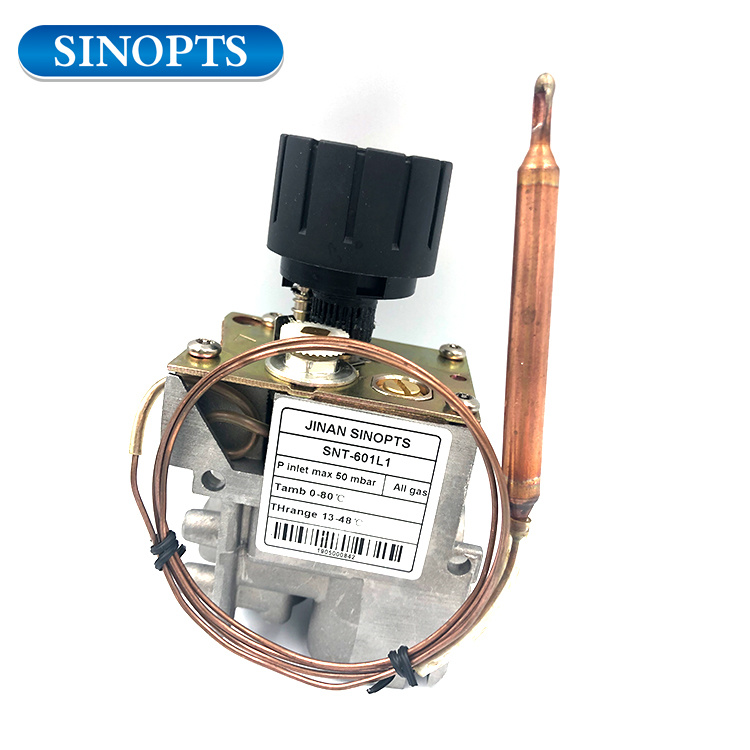

13-48 Degree Thermostatic Gas Control Valve

Model NO. : SNT-601L1

Structure : Pulse

Operating Temperature : 13ºC-48ºC

Transport Package : Carton

Trademark : Sinopts

Origin : China

Supply Ability : 300000 Sets/Year

Media : Gas

Certification : CE

Temperature : Ordinary Temperature

Connection : Thread

Pressure : Non-Ajustable

Closed : Closed

Samples : US$ 60/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

Contact Now

Product Description

13-48 Degree Thermostatic Gas Control Valve

Model Number	SNT-601L1
Operating temperature	13ºC-48ºC
Ambient Temp	0ºC-80ºC
Maximum intake pressure	50 mbar
Exhaust pressure	3-18 mbar
Thermocouple interface	M101.0 , M91.0

Main Features

1) Thermoelectric flame supervision device with restart interlock.
2) Pressure reglator with. Direct pressure regulator class B.
3) Pilot gas rate adjuster.
4) With inlet and outlet pressure test points
5) Max capacity can be 5.0 CBM/hours.
13-48 Degree Thermostatic Gas Control Valve

1. 24h on line service
2. We can supply free spare parts for replacement if they are destroyed during devliery.
3. quick feedback and on time delivery, life long service.
4. competitive price with good quality
5. Have exported the product to many countries, such as Russia, Brazil, Uzbekistan,Australia, etc.
6. Good feedback from our customers.

13-48 Degree Thermostatic Gas Control Valve Images
