Sinopts 100-340 Degree Celsius Gas Boiler Temperature Control Valve Thermostat

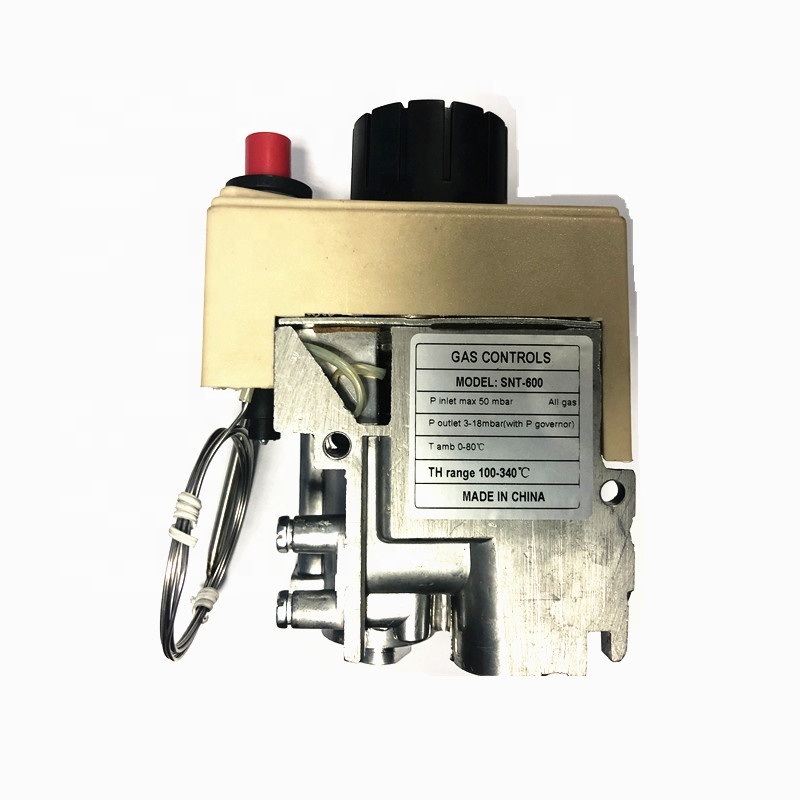

Model NO. : SNT-600

Type : Home Appliance Parts

Appliance : Commercial Kitchen

Feature : Eco-Friendly

Pressure : Low Pressure

Structure : Control

Function : Adjustable Thermosta

Port Size : 3/8"

Transport Package : Carton

Specification : 100-340 Degree

Trademark : Sinopts

Origin : China

Supply Ability : 6000PCS/Month

Temperature : Ordinary Temperature

Certification : CE, ISO9001, CSA

Media : Gas

Standard : Standard

Power : Manual

Material : Casting, Aluminum

Samples : US$ 60/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

Contact Now

Product Description

Thermostat, utilizes the ceramic switch box, has the advantages of accurate temperature controlling, wide control range, great contact capacity, high reliabilities and thin thickness.

It is suited for electric heater, electric boiler, drum washing machine, electric oven and so on, as electric-thermal control.

It is also suited for room temperature control and refrigeration control.

Main gas connection	Rp1/2 or Rp3/8	Usage gas	All gas
Thermocouple connection	M9X1, M10X1	Max gas inlet pressure	50 mbar
Outlet pressure setting range	3-18mbar	Flange fixing holes	M4X7
TH range	100-340ºC	Mounting holes	5.0diameter
Pilot outlet	M10X1

Main Features

1) Thermoelectric flame supervision device with restart interlock.

2) Pressure reglator with. Direct pressure regulator class B.

3) Pilot gas rate adjuster.

4) With inlet and outlet pressure test points

5) Max capacity can be 5.0CBM/hours
